Inline duct fans are essential components in modern HVAC systems, providing efficient ventilation and air circulation within residential and commercial spaces. Proper installation of inline duct fan systems can significantly improve indoor air quality, energy efficiency, and overall comfort. This article delves into the comprehensive process of installing an inline duct fan, discussing the necessary tools, step-by-step procedures, safety considerations, and best practices to ensure optimal performance.

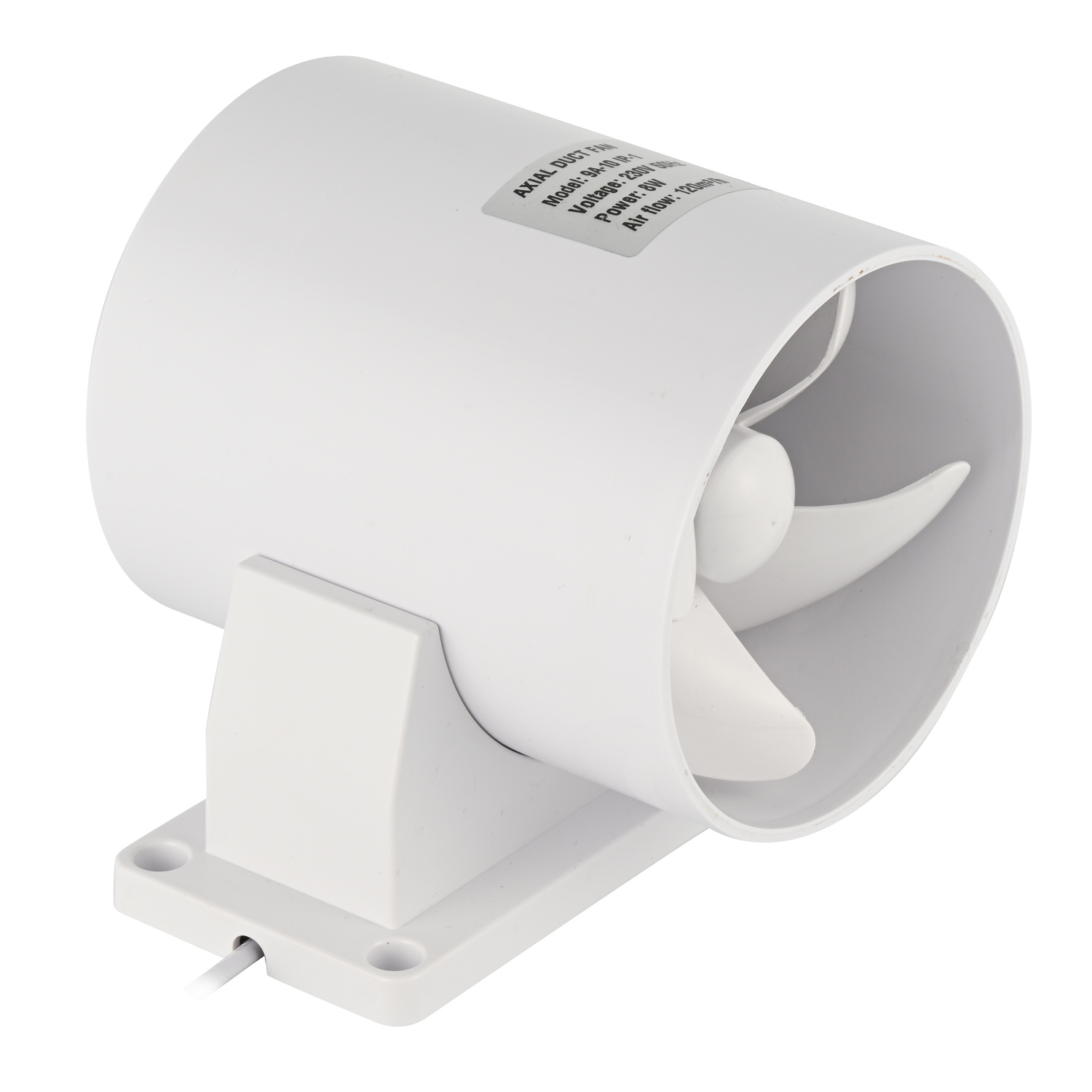

An inline duct fan is a mechanical device installed within the ductwork of a ventilation system to boost airflow. These fans are particularly useful in areas where the existing HVAC system fails to provide adequate air movement. The duct inline exhaust fan enhances the system's efficiency by reducing energy consumption and improving air distribution.
Inline duct fans come in various types, including axial, centrifugal, and mixed-flow designs. Each type has specific characteristics suited for different applications:
Axial Fans: Ideal for moving large volumes of air at low pressure, commonly used in general ventilation.
Centrifugal Fans: Suitable for applications requiring higher pressure, such as longer duct runs or systems with significant resistance.
Mixed-Flow Fans: Combine features of axial and centrifugal fans, offering a balance between air volume and pressure capabilities.
Before commencing the installation, gather all necessary materials and tools to ensure a smooth process:
Inline duct fan unit
Flexible or rigid ductwork
Screwdrivers and wrenches
Metal snips (if cutting ductwork)
Screws and mounting brackets
Electrical supplies (wire connectors, electrical tape)
Protective gear (gloves, safety glasses)
Sealant or duct tape for airtight connections
Pressure switch (for inline duct booster fan with pressure switch installations)
Safety is paramount when installing HVAC components:
Power Off: Always turn off power to the HVAC system at the breaker box to prevent electrical hazards.
Protective Equipment: Wear appropriate safety gear to protect against injury.
Follow Manufacturer Instructions: Adhere to the specific guidelines provided by the fan manufacturer.
Professional Assistance: Consult a professional if unsure about any step in the installation process.
Choose an appropriate location within the ductwork where the fan can be installed without obstructing airflow or accessibility. The location should allow for easy maintenance and be near an electrical source if the fan requires power.
Measure and mark the section of the duct where the fan will be installed. Carefully cut the duct using metal snips or a suitable cutting tool. Ensure the edges are smooth to prevent damage to the fan or injury during installation.
Insert the inline duct fan into the ductwork, aligning it according to the direction of airflow indicated on the fan housing. Secure the fan using mounting brackets and screws, ensuring it is firmly in place to prevent vibration and noise.
Attach the ductwork to both ends of the fan, making sure there are no gaps or leaks. Use sealant or duct tape to create airtight connections, which is crucial for system efficiency.
Connect the fan to the electrical supply according to the manufacturer's instructions. This may involve hardwiring to the HVAC system or plugging into a nearby outlet. For installations requiring automated control, such as an inline ac duct fan with a pressure switch, ensure proper integration with the system controls.
Restore power to the HVAC system and test the fan to confirm it operates correctly. Check for unusual noises, vibrations, or airflow issues. Make adjustments as necessary to optimize performance.
Incorporating a pressure switch with an inline duct booster fan allows the fan to activate automatically based on airflow demand. This enhances energy efficiency and extends the fan's lifespan. Installation involves connecting the pressure switch to the fan's control circuit and calibrating it per the system's requirements.
To minimize noise, consider installing acoustic insulation around the fan or using vibration dampeners. This is particularly important in residential settings where noise levels can impact comfort.
Regular maintenance ensures the longevity and efficiency of the inline duct fan:
Cleaning: Remove dust and debris from the fan blades and housing periodically.
Inspection: Check for signs of wear, loose connections, or corrosion.
Lubrication: Apply lubricants to moving parts if recommended by the manufacturer.
Professional Servicing: Schedule professional inspections annually to address potential issues proactively.
Installing an inline duct fan correctly yields several advantages:
Improved Air Quality: Enhances ventilation, reducing pollutants and humidity.
Energy Efficiency: Optimizes HVAC system performance, leading to energy savings.
Extended HVAC Lifespan: Reduces strain on the system by promoting even airflow distribution.
Comfort Enhancement: Provides consistent temperatures and fresh air throughout the space.
A study conducted by the Air Movement and Control Association International revealed that buildings with properly installed inline duct fans experienced up to a 15% increase in HVAC efficiency. Experts suggest that integrating smart controls with inline fans can further enhance performance by adjusting operation based on real-time environmental data.
Installing an inline duct fan is a practical solution to improve ventilation and efficiency in HVAC systems. By following the detailed steps and considerations outlined, individuals and professionals can achieve optimal results. Regular maintenance and adherence to manufacturer guidelines will ensure the system remains effective over time. For high-quality products and further information, consider exploring options like the inline duct fan and other models suited to specific needs.
